IP65/IP69K
TEMP-20°/+60°C
SENSOROcta-core
WT475 g (with battery)
ATEX/IECEx Zone 1/21

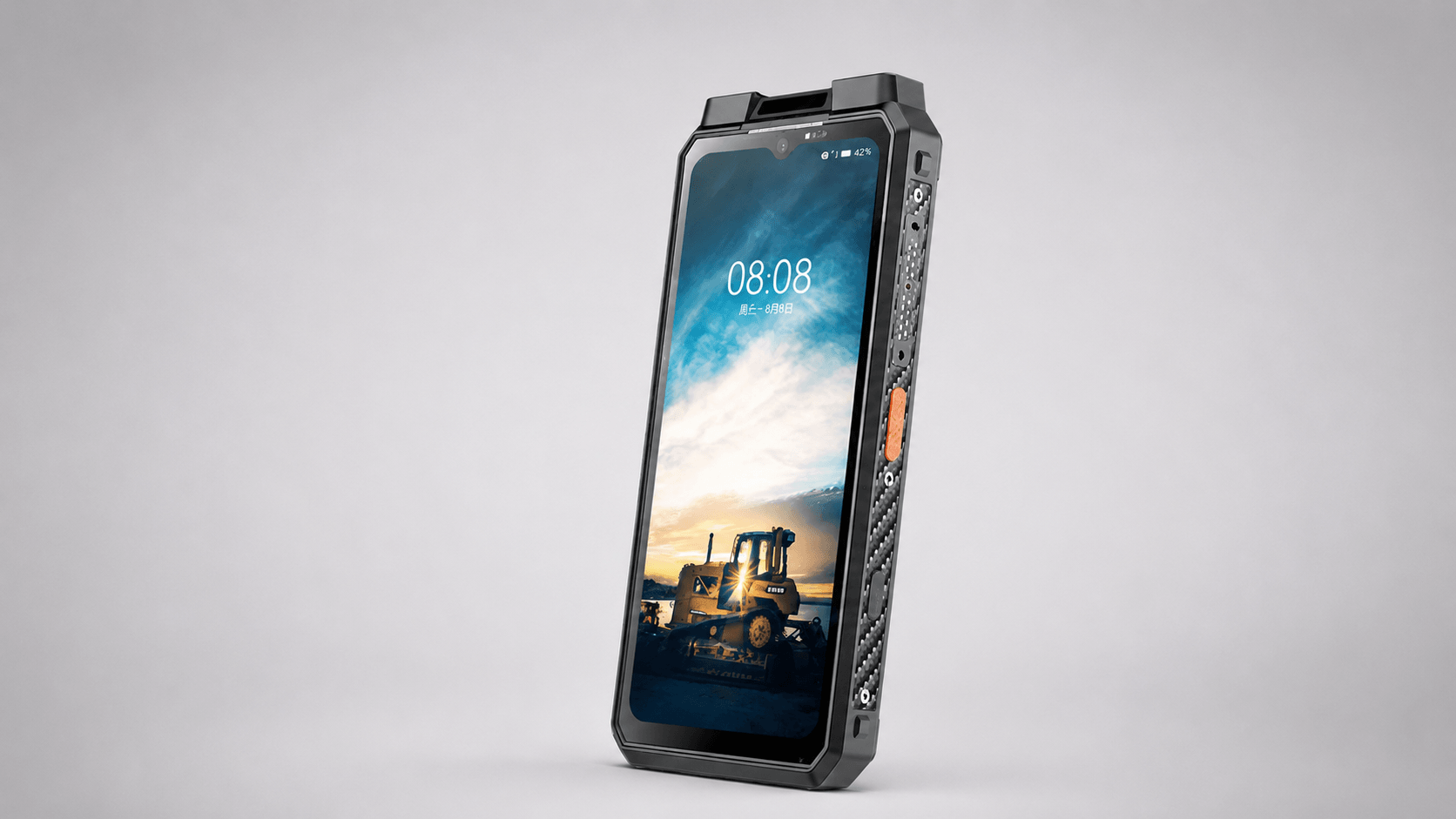

BWD-M8x with Thermal Camera
ATEX & IECEx certified 5G smartphone with integrated thermal imaging for Zone 1 & Zone 21.
Price
$3,400
USD
Minimum Order50 units
Technical Specifications
Sensor
SensorMediaTek Dimensity 700 (MT6833) Octa-core
Resolution6.58-inch IPS, FHD+ (1080 x 2408 pixels)
Thermal SensitivityIntegrated Thermal Camera
Enclosure
Ingress ProtectionIP65/IP69K
Operating Temp-20°C to +60°C
HousingRuggedized with CORNING® GORILLA® GLASS 5
Weight475 g (with battery)
Certification
CertificationATEX/IECEx Zone 1/21 (Ex ic IIC T4 Gc / Ex ic IIIC T135°C Dc)
Minimum Order50 units
Additional Specifications
Hardware PlatformMediaTek Dimensity 700 (MT6833)
Software PlatformAndroid™ 13
Memory8 GB RAM + 256 GB internal storage
Display6.58-inch IPS, FHD+ (1080 x 2408 pixels)
Rear Main Camera64 MP
Night Vision Camera13 MP
Macro Camera2 MP
Thermal CameraIntegrated, 256×192 resolution
Front Camera32 MP
Battery9600 mAh Li-Polymer, USB-C
Dimensions183.1 mm × 83.2 mm × 23 mm
Weight475 g (with battery)
ColorBlack
DurabilityIP65/IP69K, MIL-STD-810H compliant
ConnectivityBluetooth 5.1, Wi-Fi 802.11 a/b/g/n/ac, NFC, USB 2.0 Type-C, FM radio
AudioDual microphones with noise cancellation, 3040 mm² loudspeaker, 1206 receiver
SensorsAccelerometer, proximity, ambient light, digital compass, gyroscope, barometer, face recognition
Radio FeaturesDMR Tier II (2 W, UHF 400-470 MHz)
NavigationGPS, BEIDOU
Frequency BandsGSM/GPRS: B2/B3/B5, WCDMA: B2/B4/B5, LTE FDD: B2/B4/B5/B7/B12/B17, LTE TDD: B41/B48, 5G NR: N2/N4/N5/N7/N12/N17/N25/N28/N40/N41/N48/N77/N78
Network Mode5G NR Sub-6GHz, with fallback to 4G LTE, 3G WCDMA, 2G GSM/GPRS
Key Features
Multi-Spectrum Fusion
Combines thermal, optical, and SWIR sensors into a single unified feed for comprehensive situational awareness across all environmental conditions.
Explosion-Proof Enclosure
316L stainless steel housing certified to ATEX and IECEx standards, engineered to contain internal explosions and prevent ignition of surrounding atmospheres.
Remote Command Integration
Full API and SCADA compatibility enabling seamless integration with existing control room infrastructure and remote monitoring systems.
Certifications & Compliance
ATEXExplosion protection directive for hazardous environments
IECExInternational certification for explosive atmospheres
IP66/68Ingress protection against dust and water immersion
ISO 9001Quality management system certification
Need a Custom Configuration?
Our engineering team can customize the BWD-M8x with Thermal Camera for your specific zone requirements.
